乐扩USB4转单口10G以太网网卡,AQC113芯片

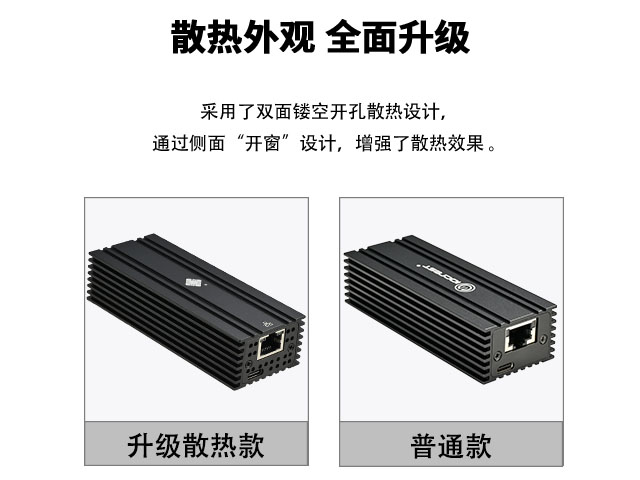

该款万兆网卡采用最新USB4(兼容雷电4/3)的技术,传输速率高达10Gbps。用户可通过支持USB-C接口的数据线连接扩展出1个标准的万兆RJ45 LAN端口,采用AQC113芯片,性能稳定可靠,致力于给您的网络带来急速体验。采用全金属外壳一体成型设计,除了保证散热性之外,又具备了抗震,抗压,防尘,防摔等特点。
型 号:
IO-HTB1131-GLAN
输入接口:
USB4
输出接口:
RJ45
传输速率:
10Gbps
产品尺寸:
102.7x40.4x25.6mm
芯片 :
AQC113
产品描述
产品规格
驱动下载
相关下载
问答

产品介绍

乐扩USB4/雷电转万兆网卡,是您追求高效工作和娱乐体验的理想选择。这款高性能的10GbE网卡,以其卓越的传输速度和稳定性,为您的设备带来革命性的网络连接。内网文件传输速度高达1.15GB/s,这不仅意味着您可以在瞬间完成大文件的传输,还能确保在进行高清视频编辑、3D渲染等数据密集型任务时的流畅性。全铝合金外壳不仅提供了坚固耐用的保护,更通过其优秀的散热性能,保障了网卡在持续高负载下的稳定运行。而低功耗设计,更是在不牺牲性能的前提下,为您节省了宝贵的能源。

特性

• 带有USB-C连接器的雷电接口

• 以太网端口支持自动协商速度:10Gb/s、5Gb/s、2.5Gb/s、1Gb/s 和 100Mb/s Base-T

• 总线供电的10GbE网络适配器

• 支持最大16 KB的巨型帧

• 每个端口典型的10GBASE-T运行功率为2.5W:支持100米Cat 6A电缆

• 每个端口典型的5GBASE-T运行功率为1.5W

• 每个端口典型的1GBASE-T运行功率为1W

• 音视频桥接 (AVB) 和 PTP/1588v2

• 同步以太网 (Sync-E),符合IEEE标准的ITU-T标准

• 支持消息信号中断 (MSI和MSI-X),以及传统INTx PCIe中断

• 支持网络控制器旁带接口 (NC-SI)

• 管理组件传输协议 (MCTP)

• IEEE 802.3an 通过非屏蔽双绞线提供10 Gbit/s以太网

• IEEE 802.3bz 2.5/5GBASE-T

• IEEE 802.3ab 1000BASE-T 千兆以太网

• IEEE 802.3u 100BASE-TX 快速以太网

• IEEE 802.1Q VLANs

• IEEE 802.3x 全双工和流量控制

• IEEE 802.3az - 节能以太网 (EEE)

• 支持预启动执行环境 (PXE)

• 不支持FCoE

• 工作温度:0°C至+108°C

• 存储温度:-40°C至+110°C

系统要求

• Microsoft® Windows® 10, 11

• Linux内核 3.10及以后版本

• Mac OS

包装内容

• 1 × 雷电10G以太网适配器

• 1 × 用户手册

• 1 × USB4数据线

注:内容可能因国家/市场而异。






❓ Does MAC OS require a driver?

✅ No driver installation is needed.

❓ Does Windows require a driver?

✅ Yes, it does.

❓ What are the requirements for the Ethernet cable?

✅ Cat6e or Cat7 is required.

❓ What types of interfaces are supported?

✅ USB 4.0, Thunderbolt 3, Thunderbolt 4, and Thunderbolt 5 are supported.

✅ USB 3.2, 3.1, 3.0, and 2.0 are not supported.

❓ Will it generate heat during operation?

✅ It uses an aluminum alloy casing for heat dissipation, with a temperature of around 40°C.

❓ Is there any noise during operation?

✅ It operates with 0 noise.

❓ Why is my computer not recognized after plugging it in?

✅1、Confirm whether the computer has a USB 4.0 or Thunderbolt port.

2、Ensure that the original factory-supplied cable is used and is securely inserted.

3、For Apple computers, confirm whether an Ethernet cable is inserted and whether the cable is intact (installation video link on Douyin).

4、For Windows systems, confirm whether the driver is installed (installation video link on Douyin).

❓ Is additional power supply needed?

✅ No.

❓ Why is the speed of my computer not satisfactory?

1、Check whether the Ethernet cable is Cat6/7.

2、Ensure the driver is up to date (http://www.mmui.com.cn/index.php?catid=38).

3、Check if the network settings have jumbo frames enabled.

4、Verify if the switch/gateway device can achieve a speed of 10G.

5、Test if the hard drive uses the NVMe protocol (the hard drive read speed should be greater than the network transfer speed)./

6、Check if different speed testing software is used (https://files.budman.pw/).

7、In Windows, check if the network card setting is at 10G. To set the network card speed: Right-click on 'This PC' -- Manage -- Device Manager -- Network Adapters, find the corresponding device, then right-click on Properties -- Advanced -- Speed and Duplex -- Value.
